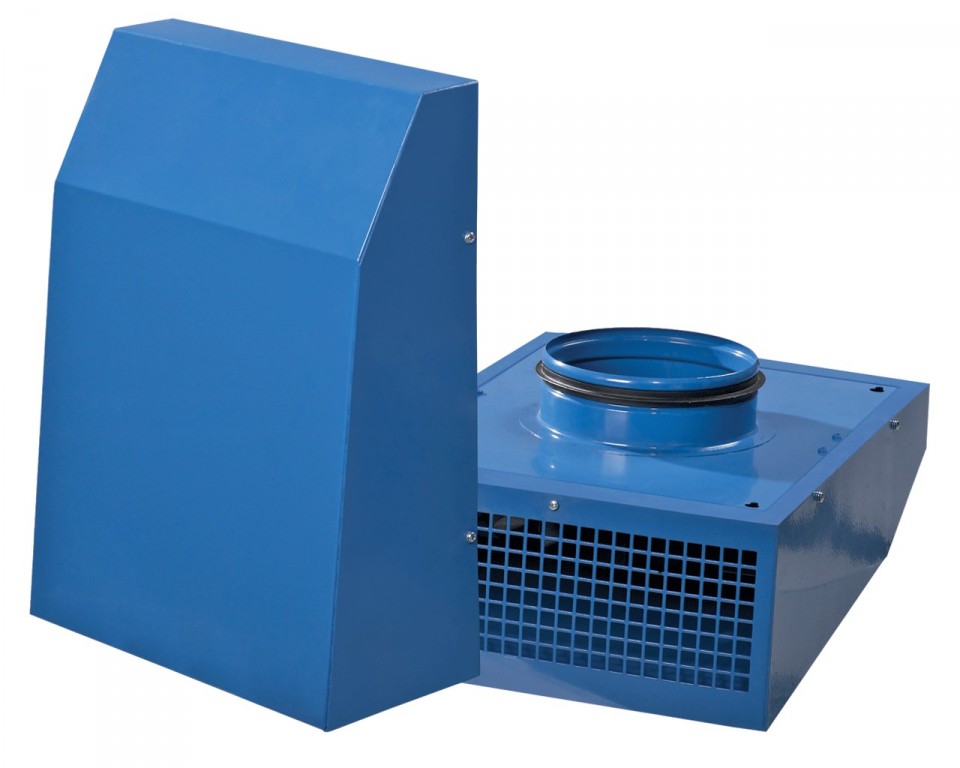

Exhaust centrifugal fans in steel casing with the air capacity up to 710 m3/h for outdoor surface mounting. Designed for exhaust ventilation systems.
VENTS VCN series
Product Description
Applications
Exhaust ventilation system for various premises designed for air exhaust with the temperature up to 55°С. Direct air exhaust is provided.
Design
Steel casing with polymeric coating ensures motor protection against direct humidity exposure in case of the unit outdoor mounting. The fan bottom has a bird and rodent proof guard. Air is exhausted vertically down.
Motor

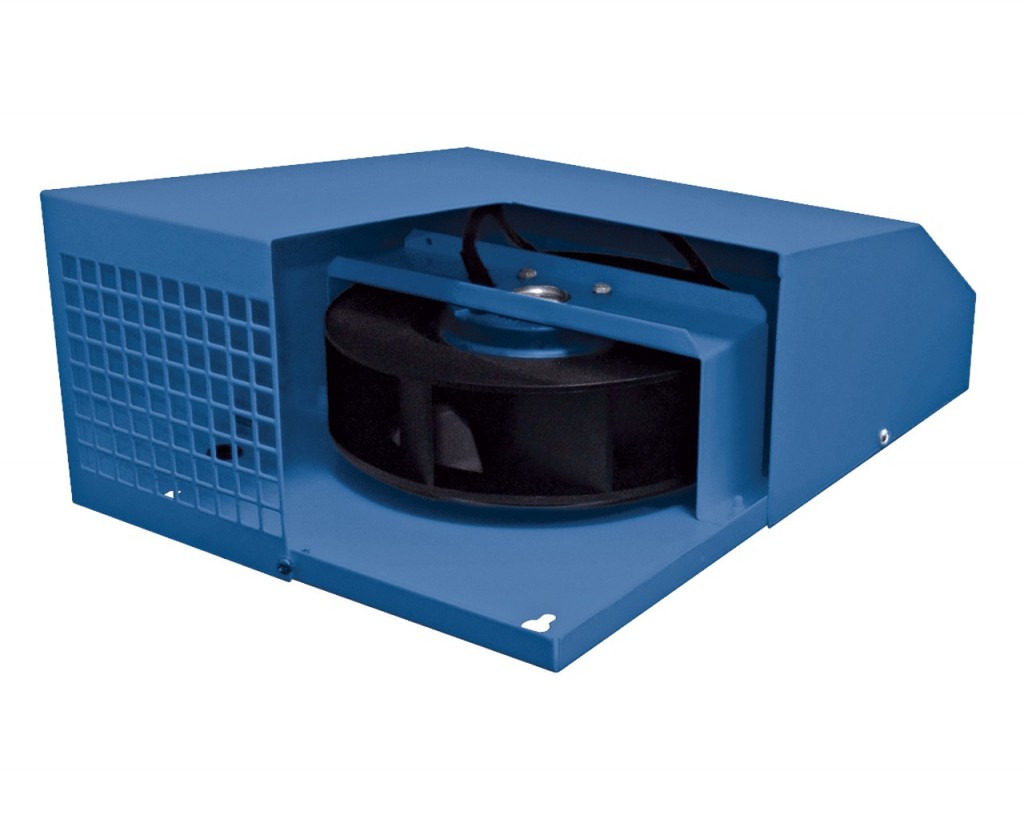

The centrifugal impeller with backward curved blades is powered by the single-phase motor with external rotor and overheating protection with automatic restart. The motor is equipped with ball bearings for long service life designed for at least 40 000 hours. For precise features, safe operation and low noise, each turbine is dynamically balanced while assembly. Motor protection rating IP 44.
