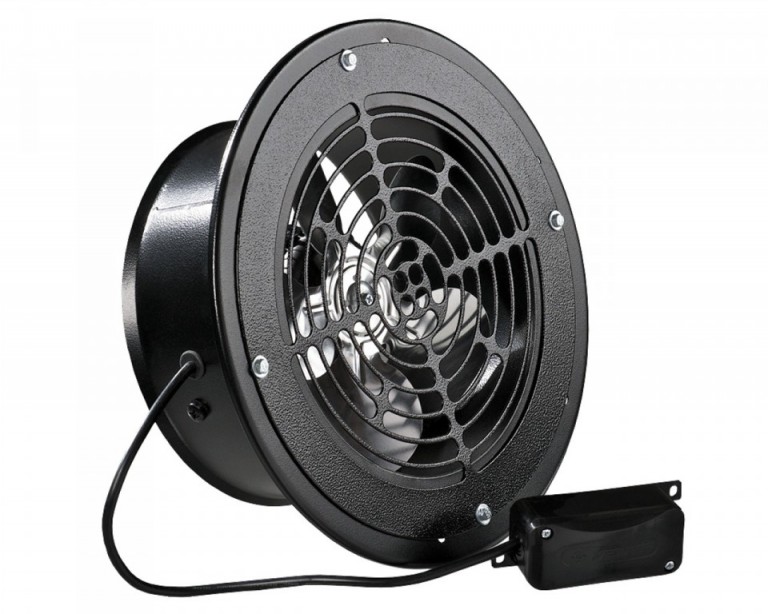

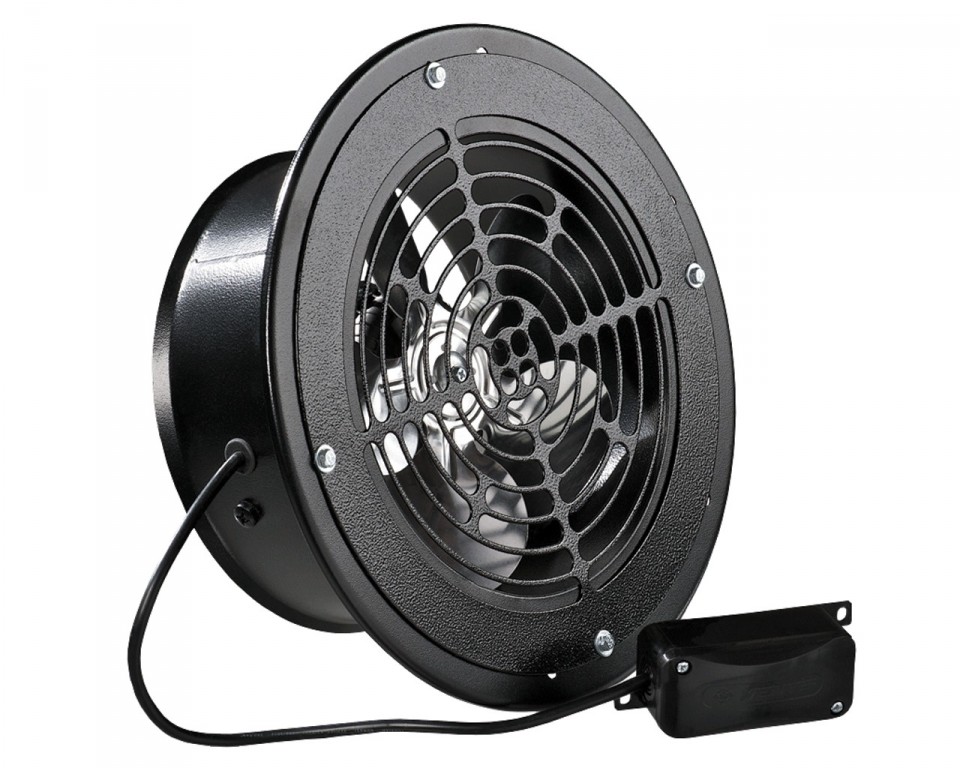

Low pressure axial fans in the steel casing with the air capacity up to 1700 m3/h for wall mounting on a round mounting plate.
VENTS OVK1 series
Product Description
Applications
Combined supply and extract ventilation systems for various premises where high air capacity at relatively low system resistance is required. OVK1 fans can be used for the direct exhaust of air. OVK1 fans can be mounted onto the external walls.
Design
OVK1 fan casings are made of steel with polymeric coating. The terminal box is fitted with a cord for remote connection.
Motor
Single-phase asynchronous motor is equipped with thermal overheating protection with automatic restart as well as ball bearings for long service life. Motor rating protection IP 44.
Speed control
Both smooth and step speed control is performed with the thyristor or autotransformer controller. Several fans can be connected to one controller in case the total power and operating current do not exceed the rated controller values.
Mounting
The fan is installed on the wall surface by means of round mounting plate. The fan is powered through the remote terminal box.
