VENTS VC series

Product Description

Applications

Supply and exhaust ventilation systems for various premises suitable for external surface mounting. For premises with high requirements to noise level, we offer units in low-noise modification (VC…Q).

Design

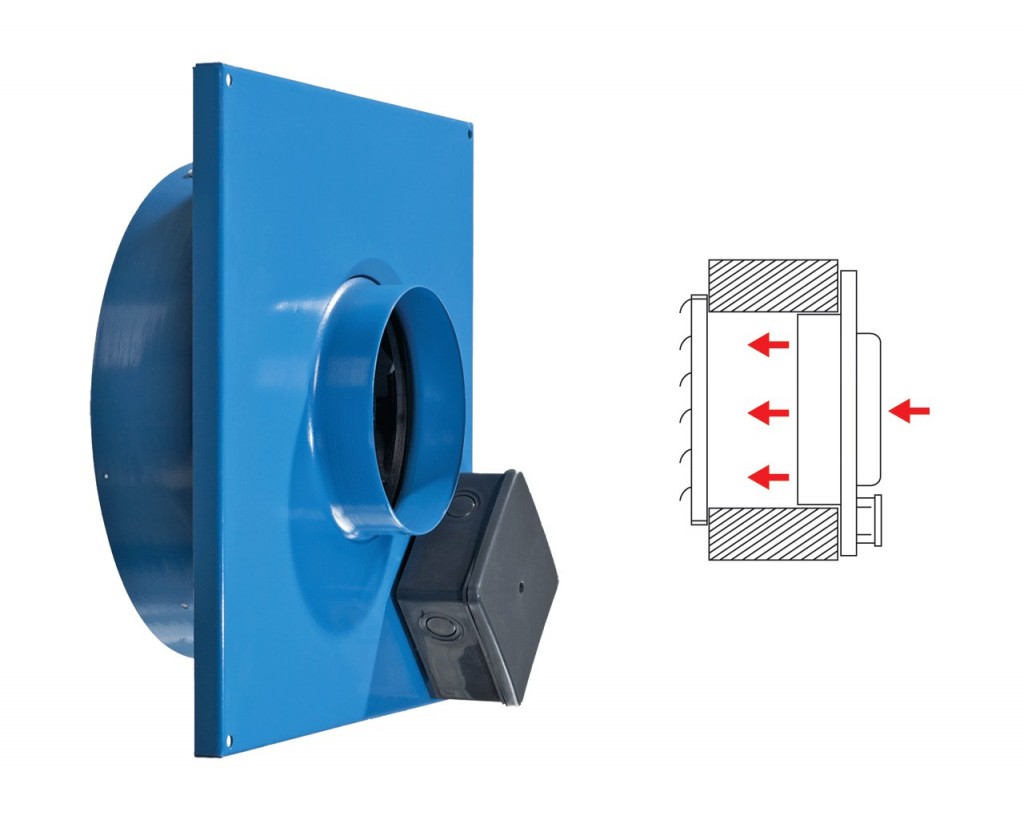

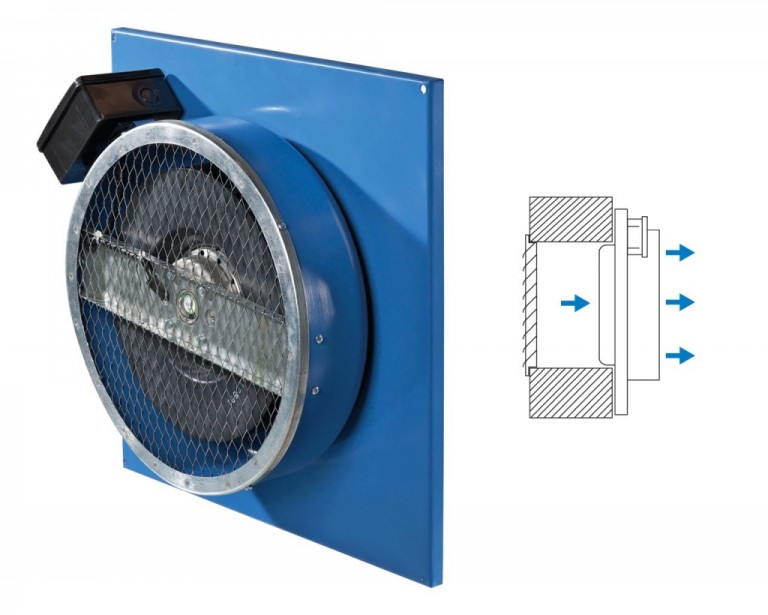

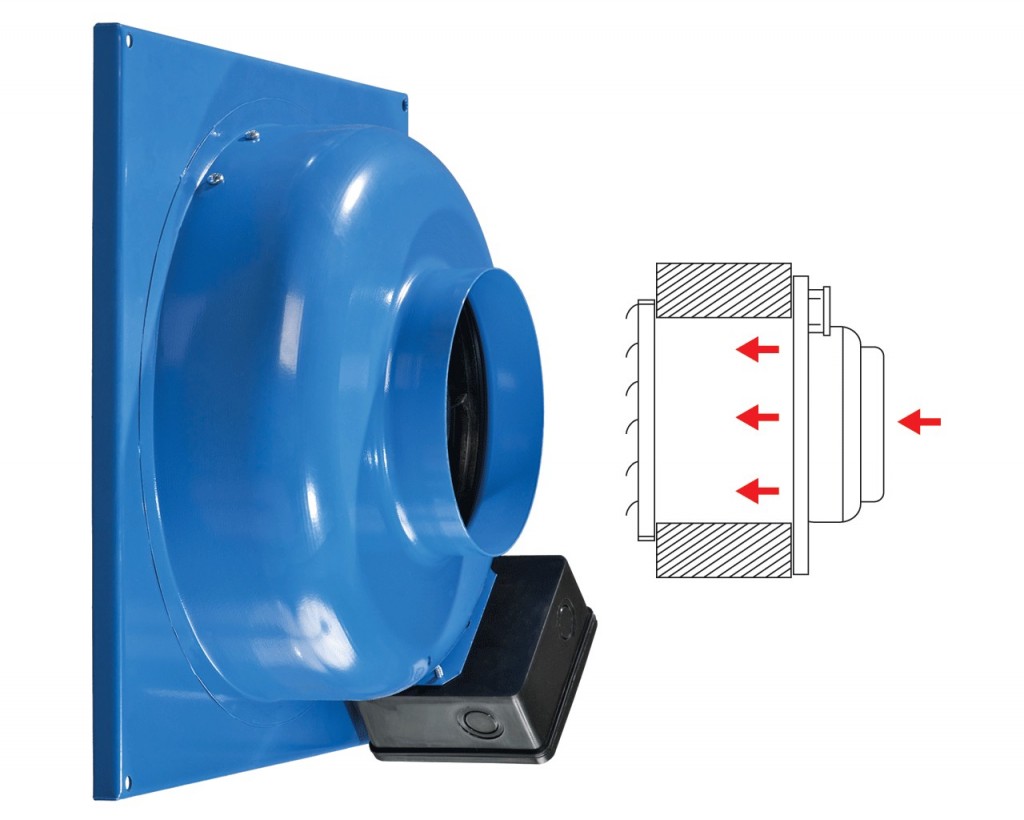

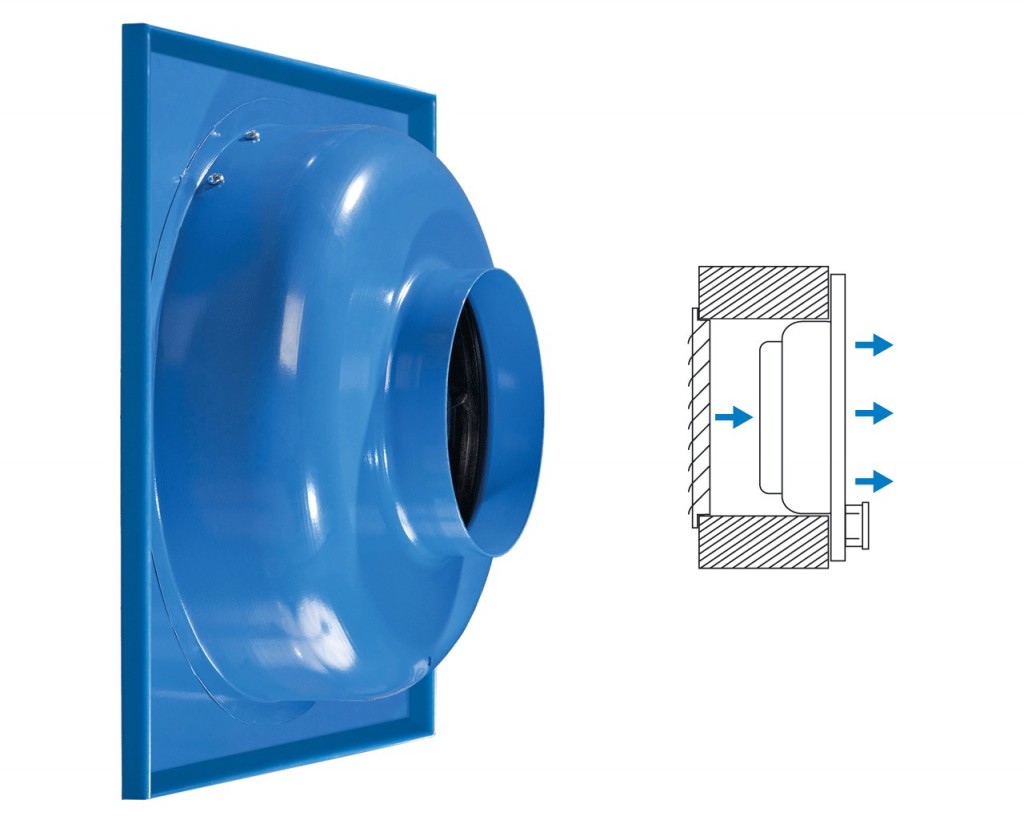

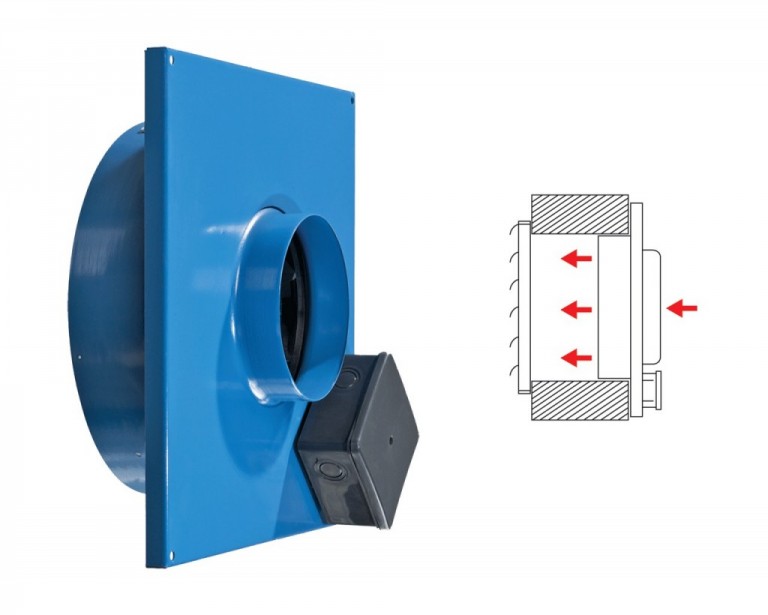

Fan casing is made of steel with polymeric coating. Various fan modifications for surface or flush mounting are available.

Motor

The plastic impeller with backward curved blades is powered by means of the single-phase motor with external rotor and overheating protection with automatic restart. For some dimension types high-powered motors are available (VC…S). Motor is equipped with ball bearings for longer service life designed for at least 40 000 hours. For precise features, safe operation and low noise, each turbine is dynamically balanced while assembly. Motor protection rating IP 44.
